TESLA MODEL 3 & Y MUD FLAPS INSTALLATIONUpdated a year ago



4771 Arroyo Vista, Suite D        [email protected]

Livermore, CA 94551            1 (213) 340-1267





TESLA MODEL 3 & Y MUD FLAPS




What’s included in the box: (x4 Mud Flaps; x8 Push Pins)


Installation Notes:


  1. Remember to park your vehicle at a well lit place or inside a garage before you install the mud flaps

  2. Behind the mud flaps, you’ll find its designated placement location: (RR = Rear right; RL; Rear left; FR = Front right; FL = Front left)


Instructions:


We recommend starting with the rear mud flaps first:

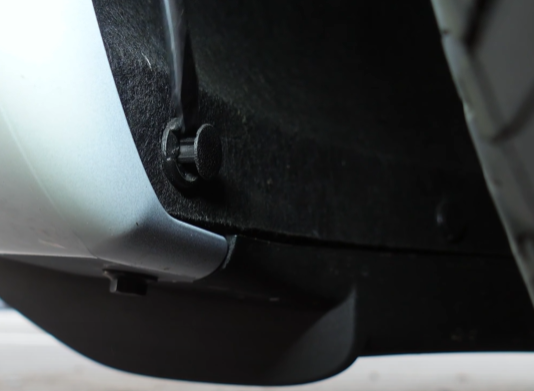

  1. Remove the plastic pop rivets using any flathead screwdriver and it should pop right off;

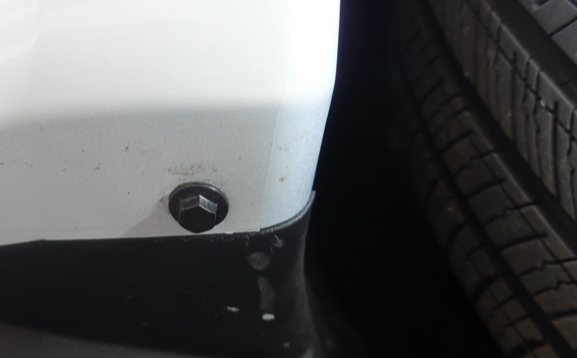

  1. Remove the 10mm bumper bolt;



  1. Put the mud flaps in place and insert the bumper lip into the space provided then use the push pins that come with the mud flaps to lock them in place;

  1. Tie back in the 10mm bumper bolt;

  1. Do the same for the other rear mud flaps.


For the front mud flaps, first turn the wheels to give you clearance;


  1. Again, remove both plastic pop rivets using any flathead screwdriver to pop them right out;

  1. Carefully line the mud flaps in place and use the push pins included;





  1. The push pins can be difficult to insert, so you’ll need something to push them in;

  2. Now, do the same for the other front mud flap.
